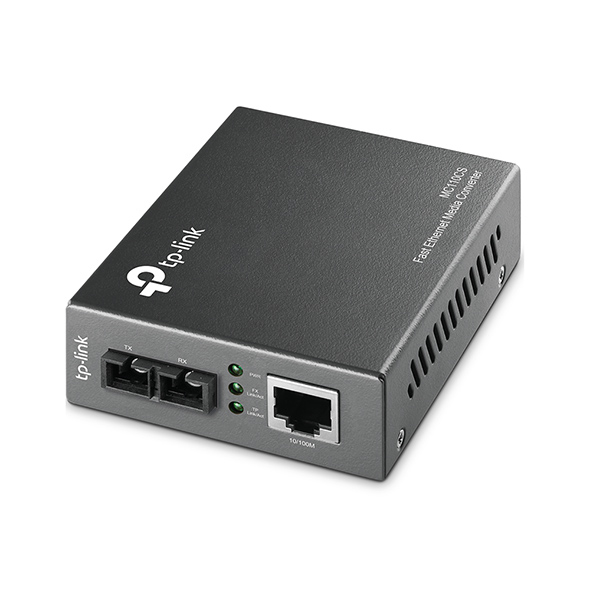

Convertidor Multimedia de Modo Individual de 10/100Mbps

MÓDULO Y CONVERTIDOR DE MEDIOS
Estándares y protocolos IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Función básica Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 20km
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Puertos 1 100M SC/UPC port
1 100M RJ45 port (Auto MDI/MDIX)
Longitud de onda 1310nm
Medios de red 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Medios de red 100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Medios de red 100BASE-FX Single-mode Fiber
Indicadores LED PWR, FDX/Col, Link/Act, SPD
Dimensiones (Al x An x Pr) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Fuente de alimentación External power supply
Consumo máximo de energía 1.52W
Seguridad y emisión FCC, CE, RoHS
Package Contents • Media Converter MC110CS
• Power Adapter
• Installation Guide
Ambiente Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
