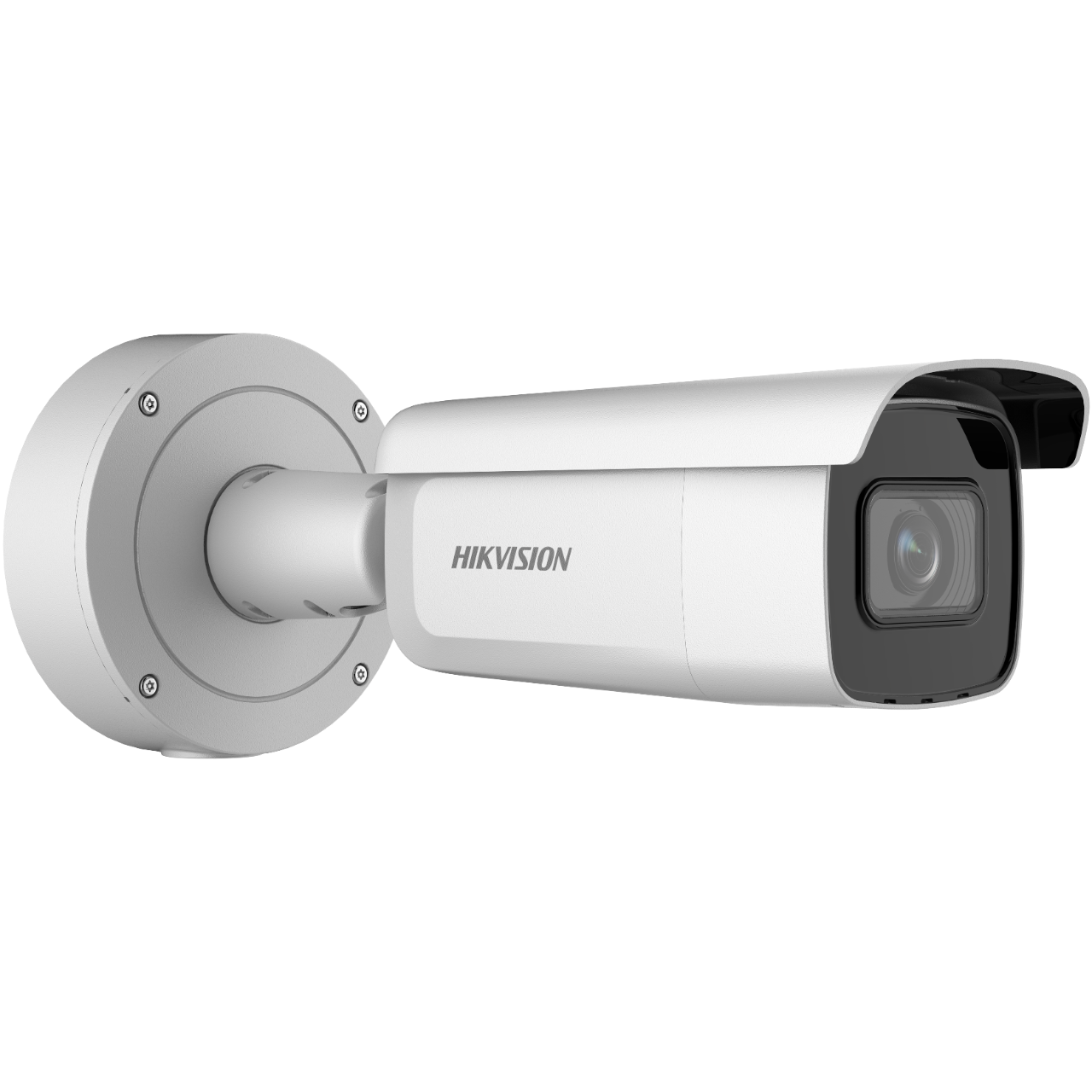

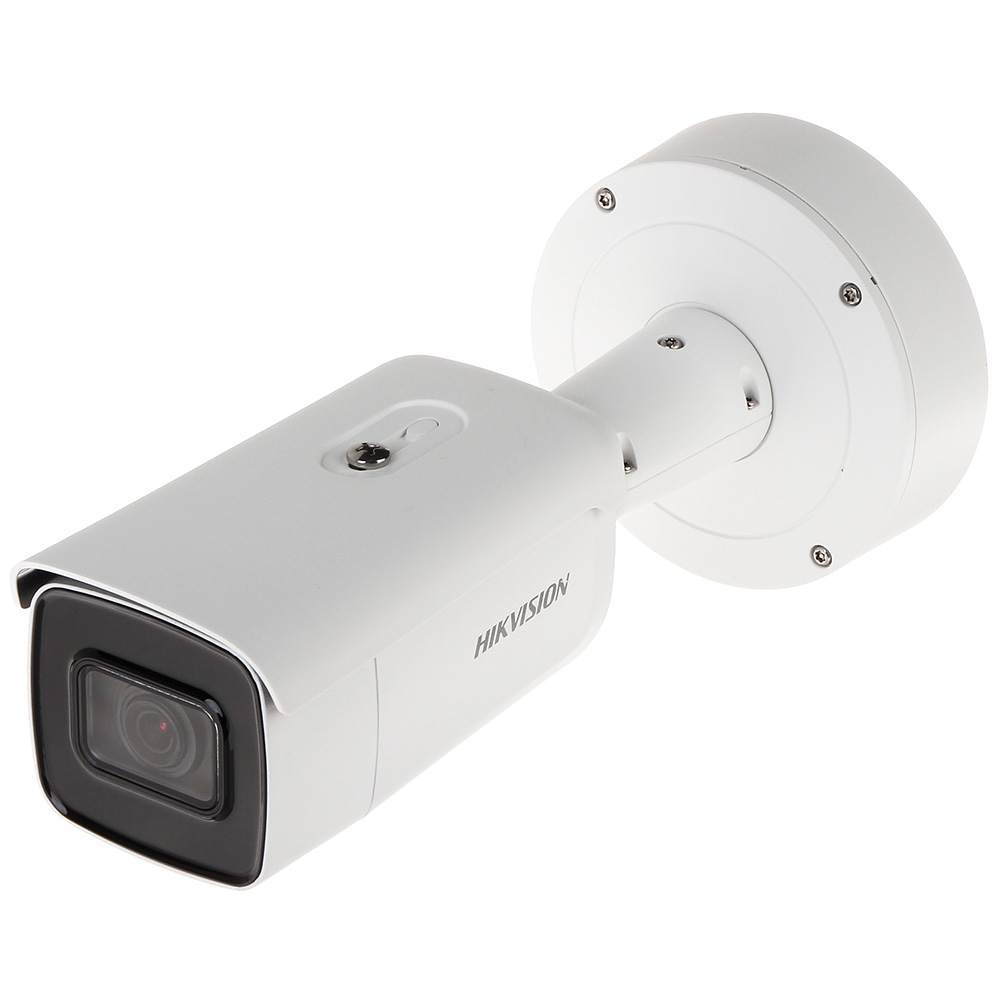

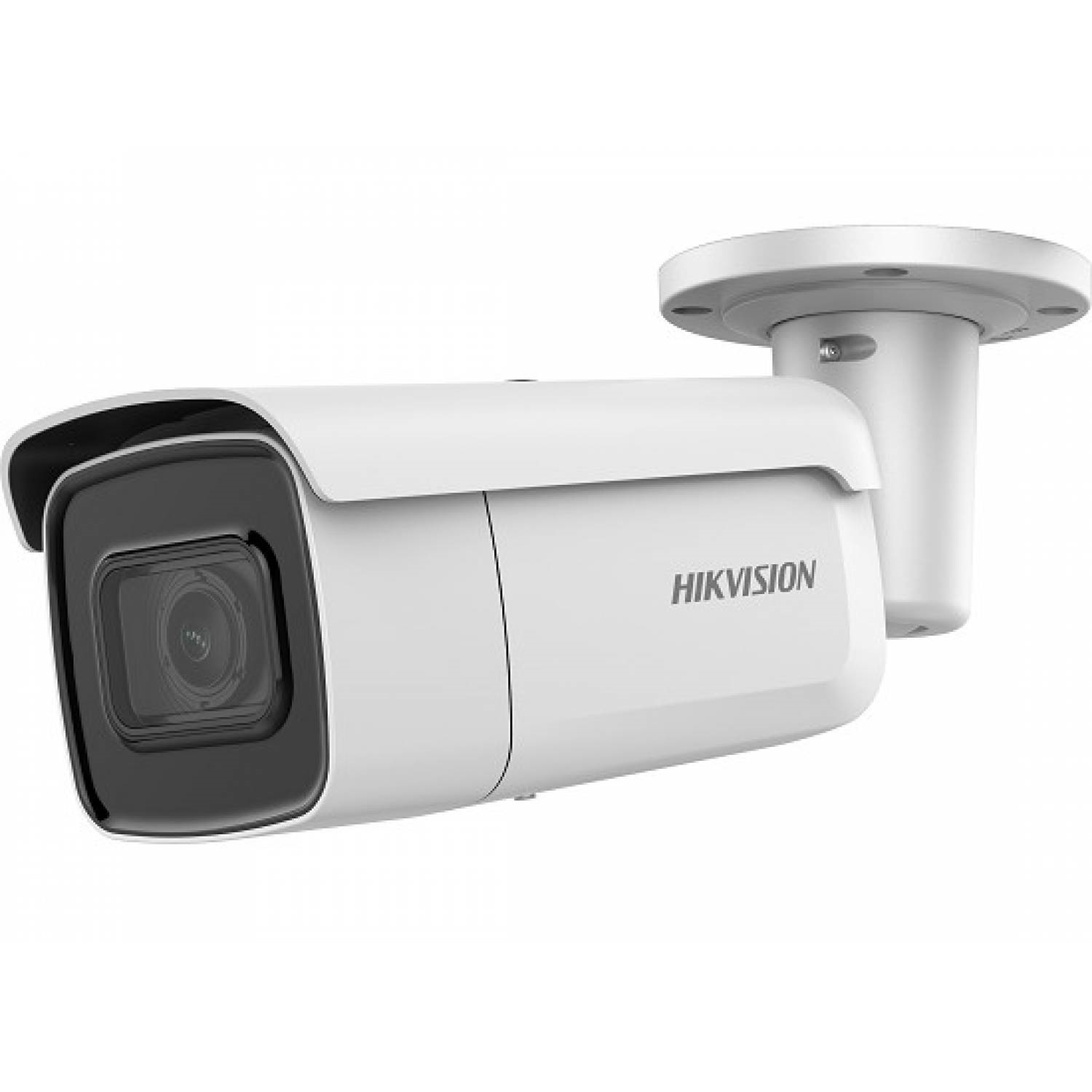

Camara IP Hikvision BULL2MP DS-2CD2626G2-IZS 2.8V

Cámara

• Sensor de imagen: 1/2.8″ Progressive Scan CMOS
• Max. Resolución: 1920 × 1080
• Iluminación mínima: Color: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Tiempo de obturación: 1/3 s to 1/100,000 s
• Día y Noche: IR cut filter
• Ajuste de ángulo: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lente

• Lente: Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 113° to 31°, vertical FOV 58° to 18°, diagonal FOV 138° to 36°
• Montura del lente: Ø14
• Iris Type: Fixed
• Apertura: F1.4

DORI

• DORI: 2.8 to 12 mm: Wide: D: 44.1 m, O: 17.5 m, R: 8.8 m, I: 4.4 mTele: D: 131.0 m, O: 52.0 m, R: 26.2 m, I: 13.1 m

Iluminador

• Tipo de luz suplementaria: IR
• Rango de luz suplementaria: Up to 60 m
• Luz de suplemento inteligente: Yes
• IR Wavelength: 850 nm

Vídeo

• Main stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-stream: 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
• Compresión de video: Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.
• Vídeo bitrate: 32 Kbps to 8 Mbps
• Tipo H.264: Baseline Profile/Main Profile/High Profile
• Tipo H.265: Main Profile
• Bit Rate Control: CBR/VBR
• Codificación de video escalable (SVC): H.264 and H.265 encoding
• Región de interés (ROI): 1 fixed region for main stream and sub-stream

Audio

• Tipo de audio: Mono sound
• Compresión de audio: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Velocidad de bits de audio: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Frecuencia de muestreo de audio: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Filtro de ruido ambiental: Yes

Red

• Protocolos: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Vista en vivo simultánea: Up to 6 channels
• API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• Smooth Streaming: Yes
• Usuario/operador: Up to 32 users. 3 user levels: administrator, operator and user
• Seguridad: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Almacenamiento en red: NAS (NFS, SMB/CIFS), auto network replenishment (ANR): Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Clientei: VMS-4200, Hik-Connect, Hik-Central
• Navegador web: Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+

Imagen

• Interruptor de parámetros de imagen: Yes
• Configuración de imagen: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Interruptor día/noche: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Mejora de la imagen: BLC, HLC, 3D DNR

Interfaz

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB

Audio

• 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarma: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Reset Key: Yes

Evento

• Evento Básico: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Evento inteligente: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))Scene change detection
• Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, trigger alarm output, audible warning, send email

Deep Learning Function

• Captura de la cara: Yes

General

• Alimentación: 12 VDC ± 25%, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
• Dimensión: Ø144.1 mm × 345.7 mm (5.7″ × 13.6″)
• Dimensión del paquete: 385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″) approx. 1450 g (3.2 lb.)
• Con peso del paquete: Approx. 2561 g (5.6 lb.)
• Condiciones de almacenaje: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Condiciones de inicio y funcionamiento: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Idioma:
  33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Función generalAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Certificaciones

• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
• SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); LOA (IEC/EN 60950-1)
• AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtecciónIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
