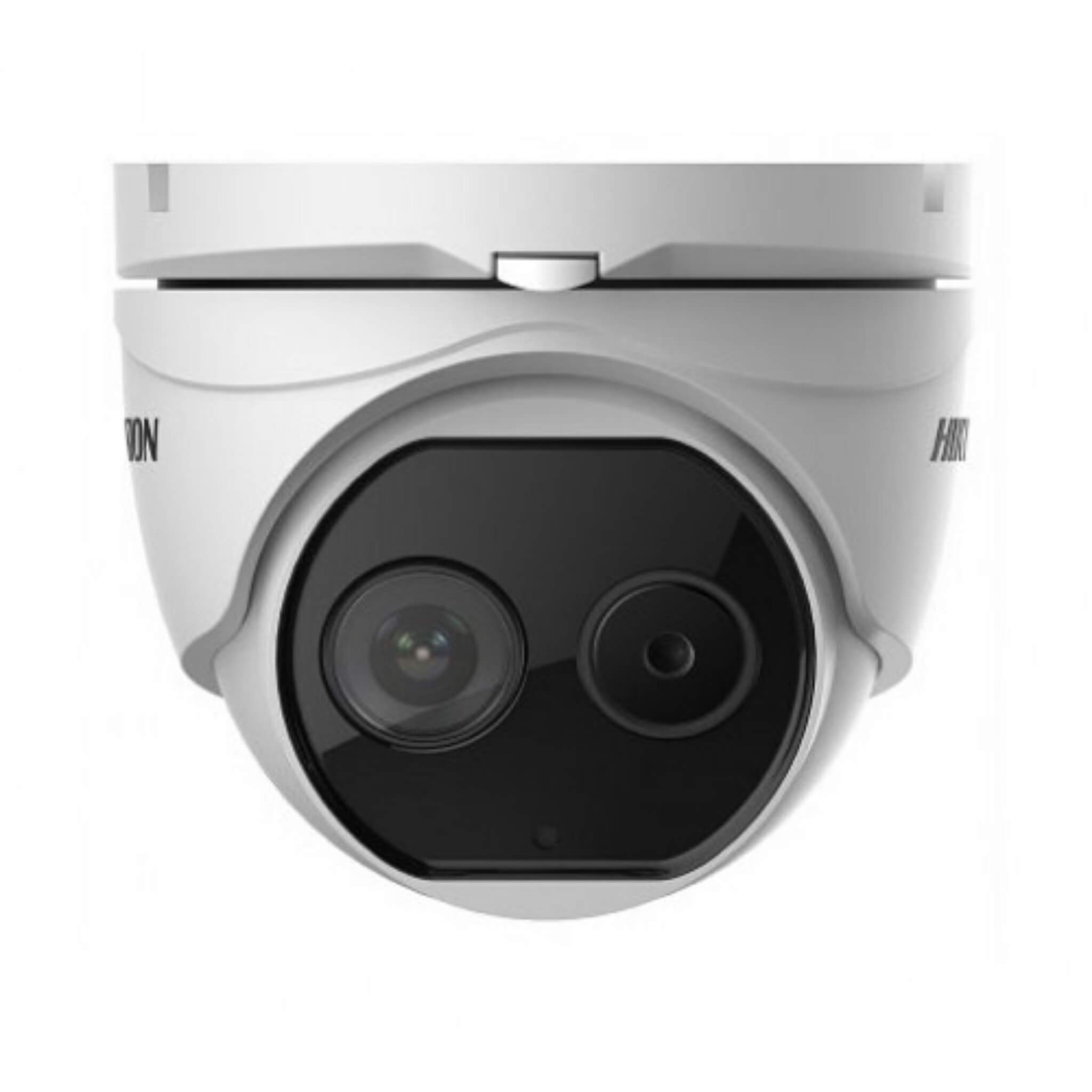

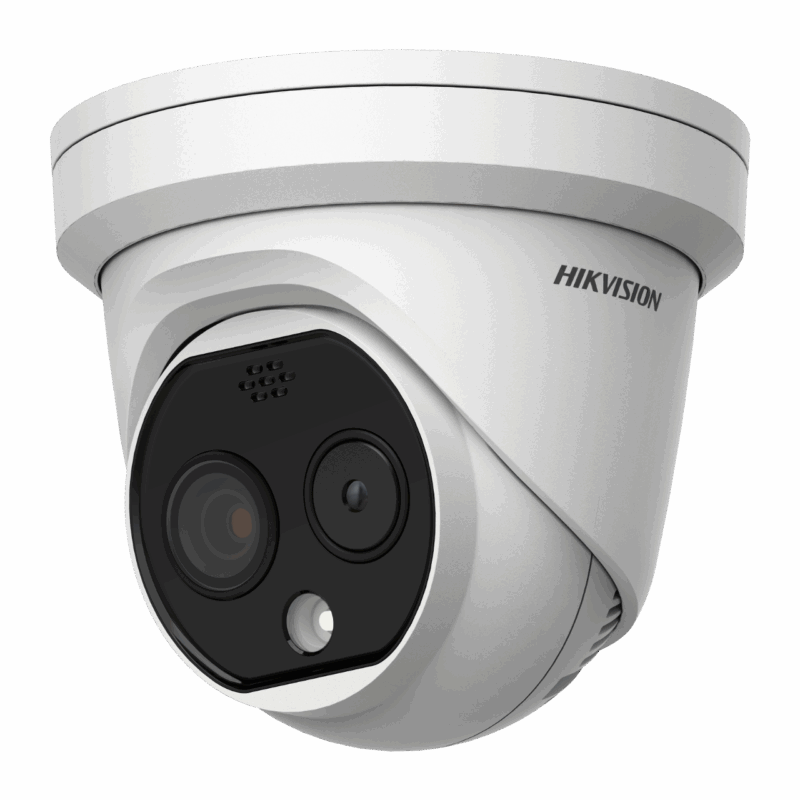

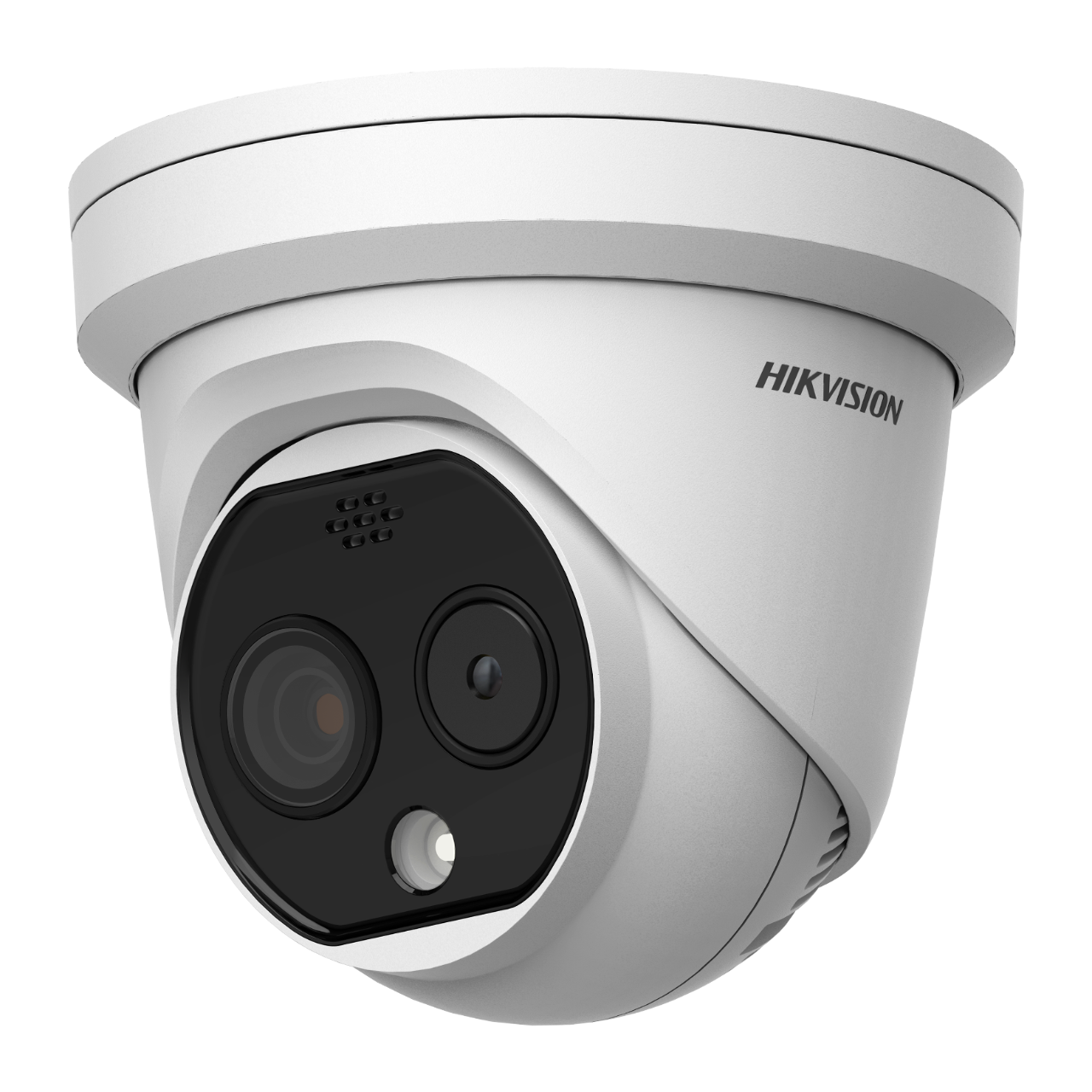

Cámara Termográfica tipo Turret HIKVISION

SKU: DS-2TD1217B-6/P
Hikvision
Disponibilidad:

Agotado


$ 622.890,00

Ver precios de las cuotas

Agotado

Módulo Térmico

  • Sensor de imagen: VOx Uncooled Focal Plane Arrays
  • Resolución: 160 × 120
  • Intervalo de píxeles: 17 μm
  • Respuesta de waveband: 8 μm to 14 μm
  • NETD: Less than 40 mK (@ 25 °C,F#=1.1)
  • Longitud focal: 6.2 mm
  • IFOV: 2.74 mrad
  • Apertura: F1.1
  • Campo de visión: 25.0° × 18.7° (H × V)
  • Min. distancia de enfoque: 0.6 m

Módulo Óptico

  • Sensor de imagen: 1/2.7″ Progressive Scan CMOS
  • Resolución: 2688 × 1520, 4 MP
  • Iluminación mínima: Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
  • Campo de visión: 39.42° × 22.14°(H × V)
  • Longitud focal: 8 mm
  • Velocidad De Obturación: 1s to 1/100,000s
  • Balance de blancos: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Modo día y noche: IR cut filter with auto switch
  • WDR: 120 dB

Image Effect

  • Fusión de imagen de doble espectro: Display the details of optical channel on thermal channel
  • Imagen en imagen: Display partial image of thermal channel on the full screen of optical channel

Iluminador

  • Distancia IR: Up to 15 m
  • Intensidad y ángulo IR: Automatically adjusted

Función Inteligente

  • Rango de temperatura: 30 °C to 45 °C (86 °F to 113 °F)
  • Precisión de la temperatura: ± 0.5 °C

Video And Audio

  • Main Stream:

    Thermal

    25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:

    50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:

    60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub Stream

    Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:

    50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:

    60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

  • Compresión de vídeo: H.264 (Baseline/Main/High Profile) /MJPEG/H.265
  • Compresión de audio: G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Protocolos: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • API: Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
  • Seguridad: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Vista en vivo simultánea: Up to 20 channels

Interfaz

  • Cliente: iVMS-4200, Hik-Connect
  • Navegador web: Plug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
  • Entrada de alarma: 1-ch inputs (0-5 VDC)
  • Salida de alarma: 1-ch relay outputs, alarm response actions configurable
  • Acción de alarma: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Entrada de audio: 1, 3.5 mm Mic in/Line in interface. Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Salida de audio: Linear Level; Impedance: 600 Ω
  • Interfaz de comunicación: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. – 1, RS-485 interface
  • Almacenamiento a bordo: Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording

General

  • Idioma del cliente web:

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • Nivel de usuario/oOperador: Up to 32 users, 3 levels: Administrator, Operator, User
  • Alimentación: PoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
  • Consumo de energía:

    PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W

    12 VDC ± 20%: 0.5 A, max. 6 W

  • Temperatura de trabajo/humedad: From 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
  • Nivel de protección: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimensión: 138.3 mm × 138.3 mm × 123.1 mm (5.45 ” × 5.45″ × 4.85 “)
  • Peso: 940 g (2.07 lb)
